4.6. Well Schematics

4.6.1. Description

Comprehensive tool for creating, visualizing, and managing detailed well schematics diagrams for well integrity management.

4.6.2. Schamtics components

4.6.2.1. Tubulars

  • Casing

  • Tubing

  • Liner

4.6.2.2. Fluids

  • Inner fluids

  • Annulus fluids

4.6.2.3. Additional Components

  • Packer

  • Plug

4.6.3. Basic Workflow

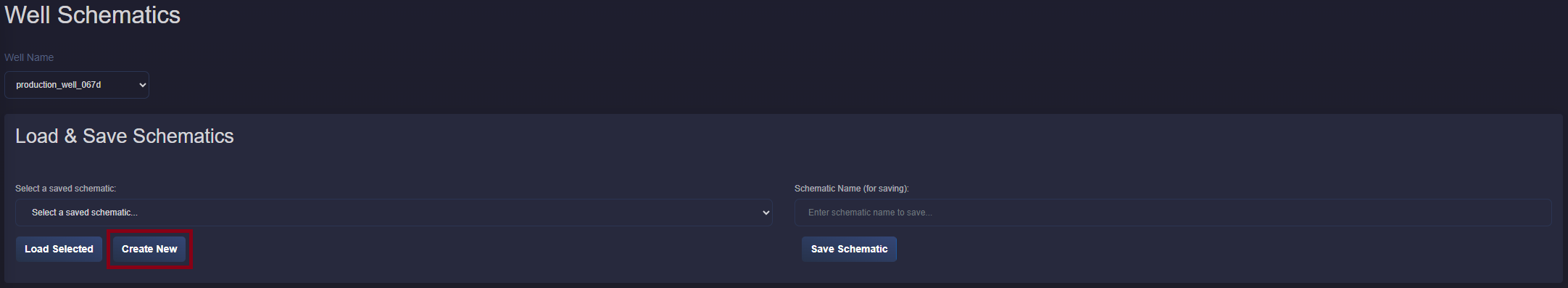

  1. Create a new well schematic: Select well and create a new well schematic.

    _images/application_schematics_1.png

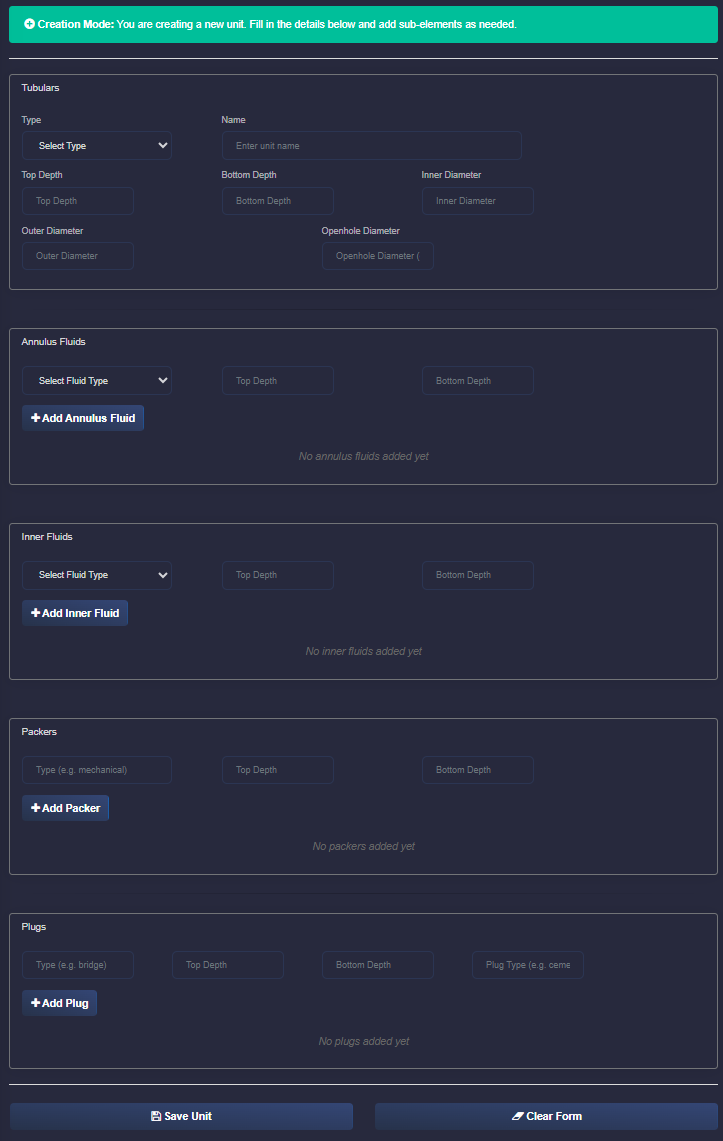

  2. Create a new schematics unit: Add tubular first, then fluid and additional components and then press save unit button

    _images/application_schematics_2.png

  3. Add multiple units or edit existing units: Press Create New Unit button to add more units or select existing unit to edit by clicking on the unit. and then pressing edit button.

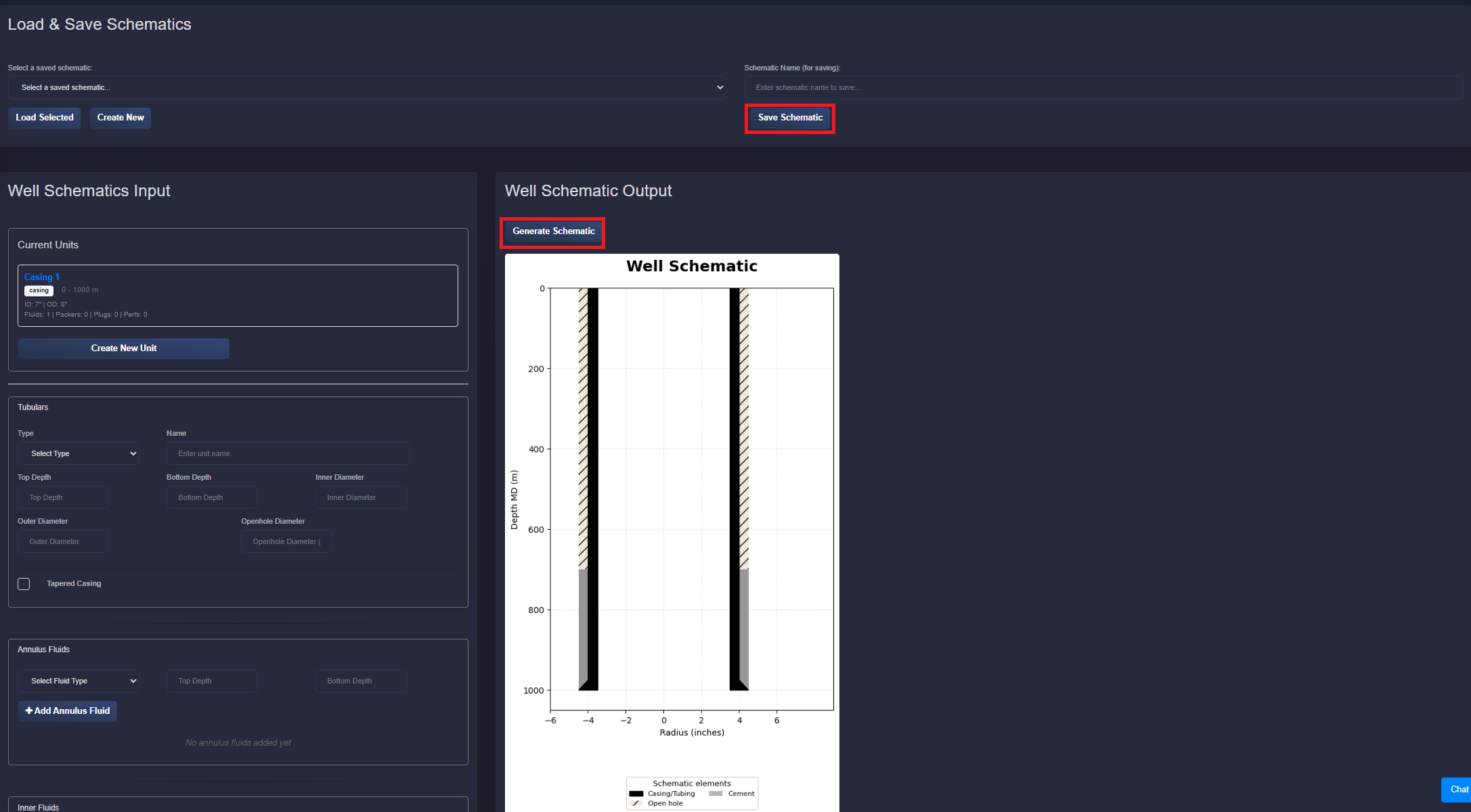

  4. Preview and save schematics: Press generate schamtics button to preview the schematics. Then save it with save button.

    _images/application_schematics_3.png

  5. Annulus and Pressure Barrier Elements: Annulus and Pressure Barrier Elements are automatically generated based on the tubular and fluid information and are passed to the well integrity application.
